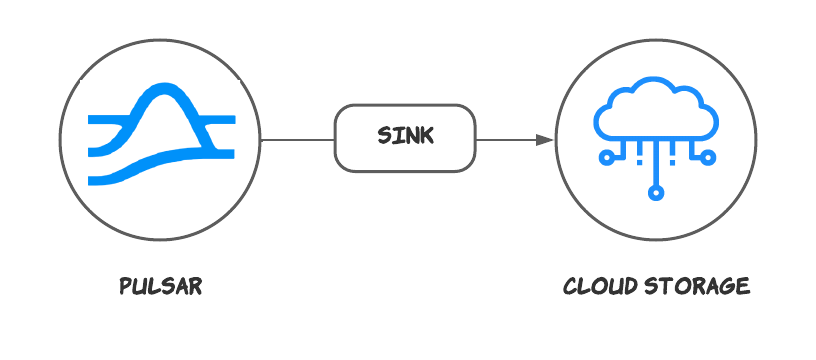

The Cloud Storage sink connector supports exporting data from Pulsar topics to cloud storage (such as AWS S3 and Google GCS) either in Avro, JSON, Parquet or other formats. According to your environment, the Cloud Storage sink connector can guarantee exactly-once support for exporting data to cloud storage.

How to get

You can get the Cloud Storage sink connector using one of the following methods:

Use it with Function Worker

• Download the NAR package from here.

• Build it from the source code.

  1. Clone the source code to your machine.

     git clone https://github.com/streamnative/pulsar-io-cloud-storage.git


  2. Assume that PULSAR_IO_CLOUD_STORAGE_HOME is the home directory for the pulsar-io-cloud-storage repo. Build the connector in the ${PULSAR_IO_CLOUD_STORAGE_HOME} directory.

     mvn clean install -DskipTests


     After the connector is successfully built, a NAR package is generated under the target directory.

     ls target
     pulsar-io-cloud-storage-2.9.4.4.nar


Use it with Function Mesh

Pull the Cloud Storage connector Docker image from here.

How to configure

Before using the Cloud Storage sink connector, you need to configure it.

You can create a configuration file (JSON or YAML) to set the following properties.

Storage provider: AWS S3

The provided AWS credentials must have permissions to access AWS resources. To use the Cloud Storage sink connector, the suggested permission policies for AWS S3 are:

• s3:AbortMultipartUpload
• s3:GetObject*
• s3:PutObject*
• s3:List*

If you do not want to provide region in the configuration, you should enable the s3:GetBucketLocation permission policy as well.

Storage provider: Google Cloud Storage

Storage Provider: Azure Blob Storage

Data format types

Cloud Storage Sink Connector provides multiple output format options, including JSON, Avro, Bytes, or Parquet. The default format is JSON. With current implementation, there are some limitations for different formats:

This table lists the Pulsar Schema types supported by the writers.

*: The JSON writer will try to convert the data with a String or Bytes schema to JSON-format data if convertable.

**: The Protobuf schema is based on the Avro schema. It uses Avro as an intermediate format, so it may not provide the best effort conversion.

***: The ProtobufNative record holds the Protobuf descriptor and the message. When writing to Avro format, the connector uses avro-protobuf to do the conversion.

This table lists the support of withMetadata configurations for different writer formats:

*: When using Parquet with PROTOBUF_NATIVE format, the connector will write the messages with DynamicMessage format. When withMetadata is set to true, the connector will add __message_metadata__ to the messages with PulsarIOCSCProtobufMessageMetadata format.

For example, if a message User has the following schema:

syntax = "proto3";
message User {
 string name = 1;
 int32 age = 2;
}

When withMetadata is set to true, the connector will write the message DynamicMessage with the following schema:

syntax = "proto3";
message PulsarIOCSCProtobufMessageMetadata {
 map<string, string> properties = 1;
 string schema_version = 2;
 string message_id = 3;
}
message User {
 string name = 1;
 int32 age = 2;
 PulsarIOCSCProtobufMessageMetadata __message_metadata__ = 3;
}

Configure it with Function Worker

You can create a configuration file (JSON or YAML) to set the properties as below.

Example

• JSON

  {
     "tenant": "public",
     "namespace": "default",
     "name": "cloud-storage-sink",
     "inputs": [
        "user-avro-topic"
     ],
     "archive": "connectors/pulsar-io-cloud-storage-0.0.1.nar",
     "parallelism": 1,
     "configs": {
        "provider": "aws-s3",
        "accessKeyId": "accessKeyId",
        "secretAccessKey": "secretAccessKey",
        "role": "none",
        "roleSessionName": "none",
        "bucket": "testBucket",
        "region": "local",
        "endpoint": "us-standard",
        "formatType": "parquet",
        "partitionerType": "time",
        "timePartitionPattern": "yyyy-MM-dd",
        "timePartitionDuration": "1d",
        "batchSize": 10,
        "batchTimeMs": 1000
     }
  }


• YAML

  tenant: "public"
  namespace: "default"
  name: "Cloud Storage-sink"
  inputs:
    - "user-avro-topic"
  archive: "connectors/pulsar-io-cloud-storage-0.0.1.nar"
  parallelism: 1

  configs:
    provider: "aws-s3",
    accessKeyId: "accessKeyId"
    secretAccessKey: "secretAccessKey"
    role: "none"
    roleSessionName: "none"
    bucket: "testBucket"
    region: "local"
    endpoint: "us-standard"
    formatType: "parquet"
    partitionerType: "time"
    timePartitionPattern: "yyyy-MM-dd"
    timePartitionDuration: "1d"
    batchSize: 10
    batchTimeMs: 1000


Configure it with Function Mesh

You can submit a CustomResourceDefinitions (CRD) to create a Cloud Storage sink connector. Using CRD makes Function Mesh naturally integrate with the Kubernetes ecosystem. For more information about Pulsar sink CRD configurations, see here.

You can define a CRD file (YAML) to set the properties as below.

apiVersion: compute.functionmesh.io/v1alpha1
kind: Sink
metadata:
  name: cloud-storage-sink-sample
spec:
  image: streamnative/pulsar-io-cloud-storage:2.9.4.4
  className: org.apache.pulsar.io.jcloud.sink.CloudStorageGenericRecordSink
  replicas: 1
  maxReplicas: 1
  input:
    topic: persistent://public/default/user-avro-topic
    typeClassName: “[B”
  sinkConfig:
    provider: "aws-s3",
    accessKeyId: "accessKeyId"
    secretAccessKey: "secretAccessKey"
    role: "none"
    roleSessionName: "none"
    bucket: "testBucket"
    region: "local"
    endpoint: "us-standard"
    formatType: "parquet"
    partitionerType: "time"
    timePartitionPattern: "yyyy-MM-dd"
    timePartitionDuration: "1d"
    batchSize: 10
    batchTimeMs: 1000
  pulsar:
    pulsarConfig: "test-pulsar-sink-config"
  resources:
    limits:
      cpu: "0.2"
      memory: 1.1G
    requests:
      cpu: "0.1"
      memory: 1G
  java:
    jar: connectors/pulsar-io-cloud-storage-2.9.4.4.nar
  clusterName: test-pulsar

How to use

You can use the Cloud Storage sink connector with Function Worker or Function Mesh.

Use it with Function Worker

You can use the Cloud Storage sink connector as a non built-in connector or a built-in connector.

Use it as non built-in connector

If you already have a Pulsar cluster, you can use the Cloud Storage sink connector as a non built-in connector directly.

This example shows how to create an Cloud Storage sink connector on a Pulsar cluster using the pulsar-admin sinks create command.

PULSAR_HOME/bin/pulsar-admin sinks create \
--archive pulsar-io-cloud-storage-2.9.4.4.nar \
--sink-config-file cloud-storage-sink-config.yaml \
--classname org.apache.pulsar.io.jcloud.sink.CloudStorageGenericRecordSink \
--name cloud-storage-sink

Use it as built-in connector

You can make the Cloud Storage sink connector as a built-in connector and use it on a standalone cluster or on-premises cluster.

Standalone cluster

This example describes how to use the Cloud Storage sink connector to export data from Pulsar topics to cloud storage (such as AWS S3 and Google GCS) in standalone mode.

1. Prepare the AWS Cloud Storage service. In this example, we use Cloud Storagemock as an example.

   docker pull apachepulsar/s3mock:latest
   docker run -p 9090:9090 -e initialBuckets=pulsar-integtest apachepulsar/s3mock:latest


2. Put the pulsar-io-cloud-storage-2.5.1.nar in the Pulsar connector catalog.

   cp pulsar-io-cloud-storage-2.5.1.nar     $PULSAR_HOME/connectors/pulsar-io-cloud-storage-2.5.1.nar


3. Start Pulsar in the standalone mode.

   $PULSAR_HOME/bin/pulsar standalone


4. Run the Cloud Storage sink connector locally.

   $PULSAR_HOME/bin/pulsar-admin sink localrun --sink-config-file cloud-storage-sink-config.yaml


5. Send Pulsar messages. Currently, only Avro or JSON schema is supported.

     try (
                PulsarClient pulsarClient = PulsarClient.builder()
                        .serviceUrl("pulsar://localhost:6650")
                        .build();
                Producer<TestRecord> producer = pulsarClient.newProducer(Schema.AVRO(TestRecord.class))
                        .topic("public/default/test-parquet-avro")
                        .create();
                ) {
                List<TestRecord> testRecords = Arrays.asList(
                        new TestRecord("key1", 1, null),
                        new TestRecord("key2", 1, new TestRecord.TestSubRecord("aaa"))
                );
                for (TestRecord record : testRecords) {
                    producer.send(record);
                }
            }


6. Validate Cloud Storage data.

   To get the path, you can use the jclould to verify the file, as shown below.

   Properties overrides = new Properties();
   overrides.put(“jclouds.s3.virtual-host-buckets”, “false”);
   BlobStoreContext blobStoreContext = ContextBuilder.newBuilder(“aws-s3”)
           .credentials(
                   “accessKeyId”,
                   “secretAccessKey”
           )
           .endpoint(“http://localhost:9090”) // replace to s3mock url
           .overrides(overrides)
           .buildView(BlobStoreContext.class);
   BlobStore blobStore = blobStoreContext.getBlobStore();
   final long sequenceId = FunctionCommon.getSequenceId(message.getMessageId());
   final String path = “public/default/test-parquet-avro” + File.separator + “2020-09-14" + File.separator + sequenceId + “.parquet”;
   final boolean blobExists = blobStore.blobExists(“testBucket”, path);
   Assert.assertTrue(“the sink record does not exist”, blobExists);


   You can find the data in your testBucket bucket. The path is something like public/default/test-parquet-avro/2020-09-14/1234.parquet. The path consists of three parts, the basic part of the topic, partition information, and format suffix.

   • Basic part of topic: public/default/test-parquet-avro/ This part consists of the name of the tenant, namespace, and the input topic.
   • Partition information: 2020-09-14/${messageSequenceId} The date is generated based on the partitionerType parameter in the configuration. And the ${messageSequenceId} is generated by FunctionCommon.getSequenceId(message.getMessageId()).
   • Format suffix: .parquet This part is generated based on the formatType parameter in the configuration.

On-premises cluster

This example explains how to create a Cloud Storage sink connector in an on-premises cluster.

1. Copy the NAR package of the Cloud Storage connector to the Pulsar connectors directory.

   cp pulsar-io-cloud-storage-2.9.4.4.nar $PULSAR_HOME/connectors/pulsar-io-cloud-storage-2.9.4.4.nar


2. Reload all built-in connectors.

   PULSAR_HOME/bin/pulsar-admin sinks reload


3. Check whether the Cloud Storage sink connector is available on the list or not.

   PULSAR_HOME/bin/pulsar-admin sinks available-sinks


4. Create a Cloud Storage connector on a Pulsar cluster using the pulsar-admin sinks create command.

   PULSAR_HOME/bin/pulsar-admin sinks create \
   --sink-type cloud-storage \
   --sink-config-file cloud-storage-sink-config.yaml \
   --name cloud-storage-sink


Use it with Function Mesh

This example demonstrates how to create Cloud Storage sink connector through Function Mesh.

Prerequisites

• Create and connect to a Kubernetes cluster.

• Create a Pulsar cluster in the Kubernetes cluster.

• Install the Function Mesh Operator and CRD into the Kubernetes cluster.

Steps

1. Define the Cloud Storage sink connector with a YAML file and save it as sink-sample.yaml.

   This example shows how to publish the Cloud Storage sink connector to Function Mesh with a Docker image.

   apiVersion: compute.functionmesh.io/v1alpha1
   kind: Sink
   metadata:
     name: cloud-storage-sink-sample
   spec:
     image: streamnative/pulsar-io-cloud-storage:2.9.4.4
     className: org.apache.pulsar.io.jcloud.sink.CloudStorageGenericRecordSink
     replicas: 1
     maxReplicas: 1
     input:
       topic: persistent://public/default/user-avro-topic
       typeClassName: “[B”
     sinkConfig:
       provider: "aws-s3",
       accessKeyId: "accessKeyId"
       secretAccessKey: "secretAccessKey"
       role: "none"
       roleSessionName: "none"
       bucket: "testBucket"
       region: "local"
       endpoint: "us-standard"
       formatType: "parquet"
       partitionerType: "time"
       timePartitionPattern: "yyyy-MM-dd"
       timePartitionDuration: "1d"
       batchSize: 10
       batchTimeMs: 1000
     pulsar:
       pulsarConfig: "test-pulsar-sink-config"
     resources:
       limits:
         cpu: "0.2"
         memory: 1.1G
       requests:
         cpu: "0.1"
         memory: 1G
     java:
       jar: connectors/pulsar-io-cloud-storage-2.9.4.4.nar
     clusterName: test-pulsar


2. Apply the YAML file to create the Cloud Storage sink connector.

   Input

   kubectl apply -f <path-to-sink-sample.yaml>


   Output

   sink.compute.functionmesh.io/cloud-storage-sink-sample created


3. Check whether the Cloud Storage sink connector is created successfully.

   Input

   kubectl get all


   Output

   NAME                                READY   STATUS      RESTARTS   AGE
   pod/cloud-storage-sink-sample-0     1/1     Running     0          77s


   After that, you can produce and consume messages using the Cloud Storage sink connector between Pulsar and your cloud storage provider.
